Garrett GT3582R Ball Bearing Turbo - GT35R (600 HP)

Price :
Starting at: $1,479.00

Polished Comp Housing Upgrade?






Ported Anti-Surge Comp Housing?










Exhaust / Turbine Housing Type










































  • Model: 714568 , 706451
  • Manufactured by: Garrett Advancing Motion

DESCRIPTION

Have a question or need help? Not sure about what housing or A/R you need? Email us through our "Contact Us" page & we will be happy to help.

Garrett GT35R Turbo (aka GT3582R, GT35/40R)

Select your options from the menu
-Pick Your Turbine/exhaust housing (Pick from K24/K26, T25 plus, T3, T4 or Tial Stainless steel turbine)
-Turbine A/R, (Pick from .63, .72, .78, .82, 1.06 A/R)
-Compressor Housing Inlet & outlet sizes. (

This turbo is capable of 600 HP. Brand New authentic Garrett Dual Ball Bearing GT35R (GT3582R)Turbo assembly. It's available with MANY different exhaust housings & A/R's as seen above. This allows you to get the best housing for your needs. This turbo comes with a large 60-1 (T04S) compressor housing with 4.00 inlet and 2.50" outlet. It's is also available in ported and polished.

The Garrett GT35R is extremely potent turbo with high HP capability & very quick spool-up. With real Garrett GT, you can brake the rules ... Have fast spool & BIG HP at the same time!

Note:: ALL of our Garrett GT turbochargers come Fully Balanced from the factory & have the Manufacturers Warranty.

The turbo part number change based on the turbine & compressor housing selected, CHRA numbers only, etc. The following Garrett P/N's applies to this turbo.
714568-5001S
714568-5002S
714568-5003S
714568-5007S
714568-5008S
714568-5009S
714568-5010S
714568-0001
714568-0002
714568-0003
714568-1
714568-2
714568-3
706451-5005S
706451-5005
706451-5

The Garrett GT series line up is much more efficient then the old "T" technology & provides spool-up 1000's of RPMs quicker. The GT series turbos are stronger, more reliable, have less shaft movement, better flow dynamics, less lag....the list goes on. Simply put, GT blows T away!!

Compressor:
-Wheel: 82mm w/ 56 trim
-Housing A/R: .70 A/R
-Housing Style: 60-1 (T04S) (4" inlet, 2.5" outlet)
- Ported Or Polished Housing Available: Select Above

Turbine / Exhaust:
-Wheel: 68mm w/ 84 trim
-Housing A/R: Your Pick of .63 A/R, .78A/R, .82 A/R, 1.06 A/R
-Housing Type: Many Housings available. Pick from menu.

Center Section:
-Dual Stainless Steel Ball Bearings
-Oil & Water Cooled


REVIEWS

Customer Testimonials

Fantastic

I called and placed my order over the phone. I had a bunch of questions and the lady was kind and very helpful. She made sure I got all the right......
Read More ->


Genuine Brands

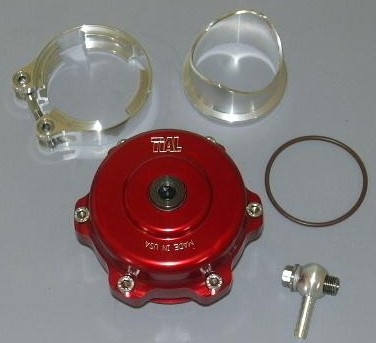

I ordered a Tial blow off valve and it was at my door in only 3 days! The serial number checked out with TiAl as authentic. No one else had the color......
