HR Monster FC (10th Ann. FC3S)
A combat ready, street warrior, built for performance
6/8/09 The FC Monster FC was updated with new parts including the HR V2 FC GT4094R turbo kit. New Pics of the fresh set up Coming Soon!!

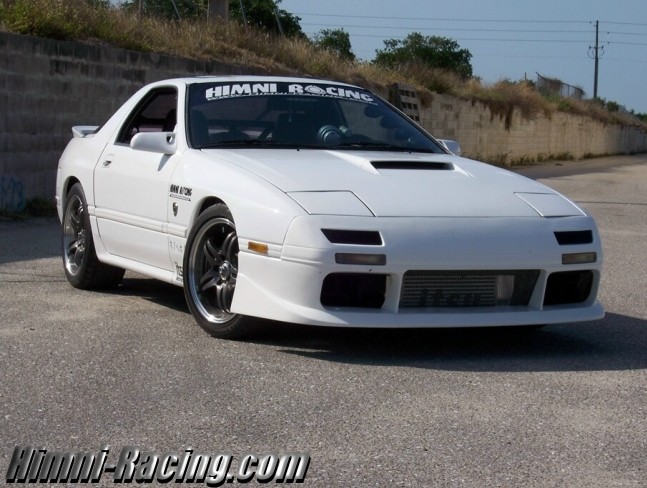

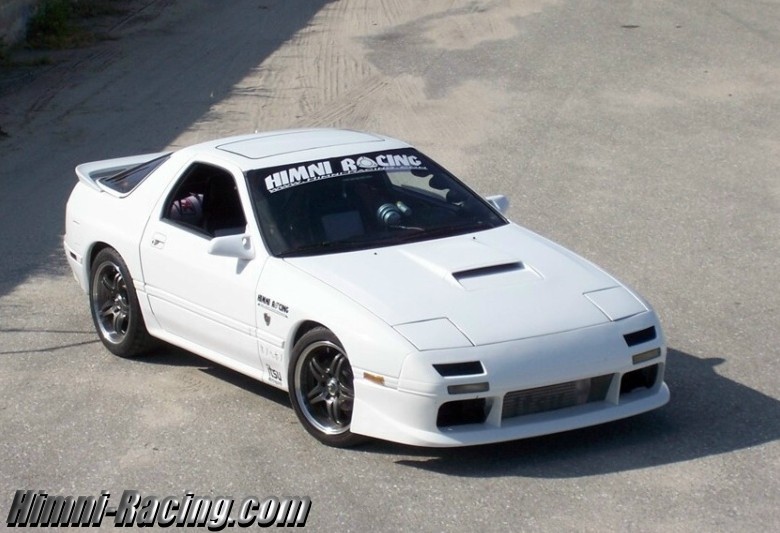

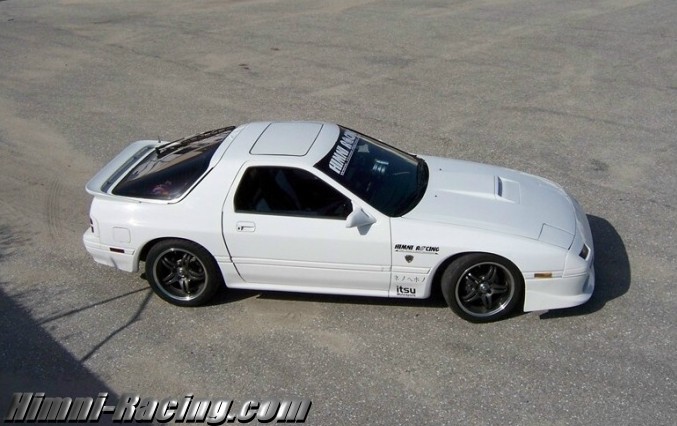

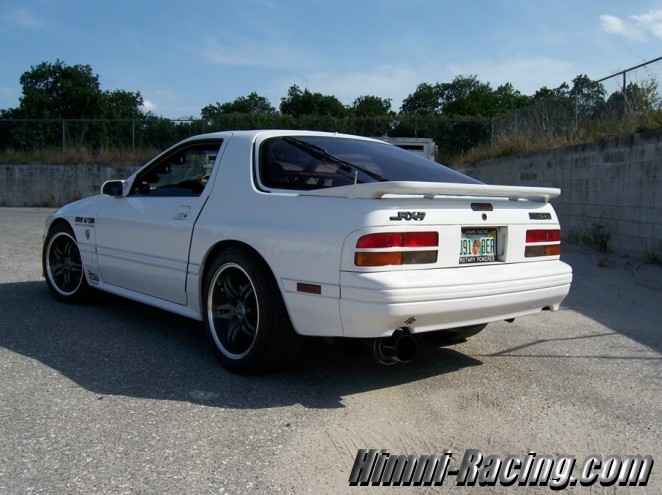

A combat ready, street warrior, built for performance. The Himni Racing "Monster FC" is just that, a 1988 10th ann FC3S RX-7 Monster that is described as "RAW". This car performs amazingly in all aspects including handling, braking, acceleration & still maintains street-ability. It is no doubt a true example of extreme performance with that VERY important aspect....... reliability. It has won awards for many reasons, including it's attention to detail. The car makes BIG HP & has proven it's self more then capable of withstanding being ripped on all day long. Built by HR, this car will snatch the panties off your girl. = )
:::Mod List:::
**Battery / Charging / Wiring
- 4 gauge hyper ground
- 950 cranking amp bat (rear mount)
- FD3S Alt.
- Quick disconnect switch
- Remote terminals in Engine bay
**Body
- Pan Speed Type II Front Bumber
**Brakes
- X drilled & slotted rotors
- Stainless Steel Braded Lines
- EBC Green Stuff front pads
- Hawk HP rear Pads
**Cooling
- Stainless Steel hoses
- Black Magic E-fan w/ thermo. switch
- Himni Racing Rad. shroud
- Koyo Racing Aluminum Rad. #1
- Small Aluminum Sub Rad. #2
**Drivetrain
- Excedy 3 Puck Sprung Disk & ACT HD Press. Plate
- ACT Streetlight Flywheel
- Comp. diff. mounts
- Himni Racing Solid Aluminum trans. mounts
- Mazdatrix Short shifter
- Neo in the LSD
- Rebuilt S5 TII trans.
- SS clutch line
**Electronics
- Pioneer Sound System
- Blitz DTT Turbo Timer
- Greddy Profec B Spec II Boost Controller
- IBM ThinkPad 600x laptop
- Microtech 4 line Hand Unit
- Microtech dash unit
- Selectable db9 port switch
- Himni Switch panel.
- Viper Alarm

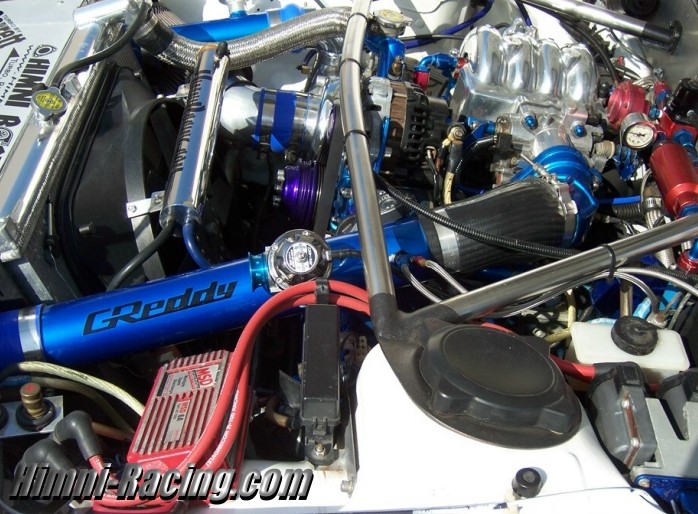

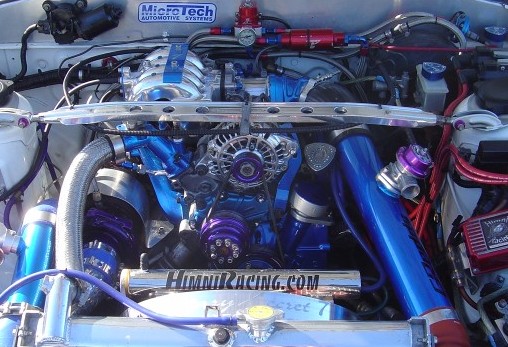

**Engine
- S5 Full Street Ported Rebuilt 13BT Engine.
- Solid Corner Seals
- Hardened 2pice, 2mm Apex seals
- 13B-RE Serpentine Pulleys
- Himni Racing Aluminum block-off plates
- Himni Racing Magnetic oil plug
- Himni Racing torque brace
- Himni Racing Solid Polyurethane FC3S RX-7 Motor Mounts
- Powder coated Candy Reflex Blue & Gun metal w/ polish

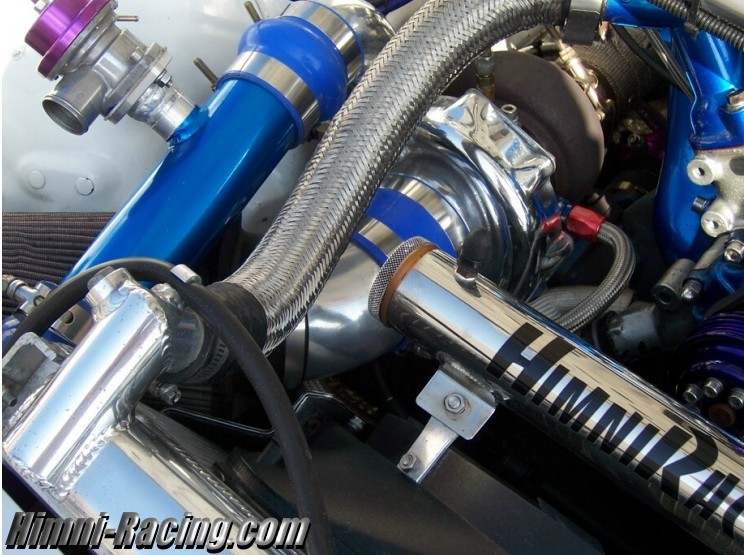

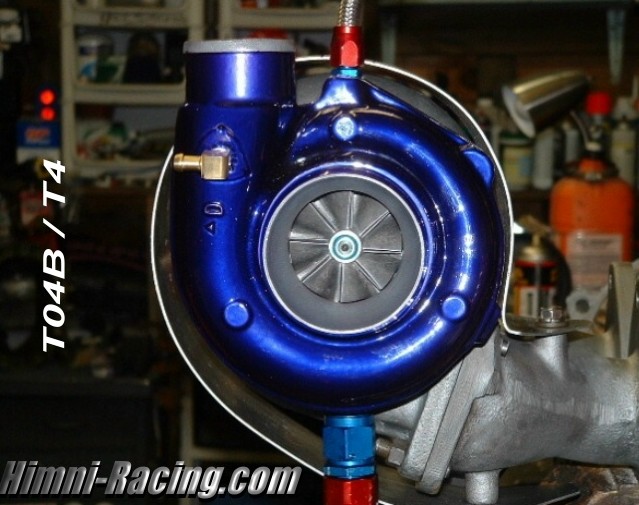

**Turbo
- Himni Racing V2 FC GT4094R Turbo Kit 87-92 Mazda RX-7 FC3S With: Himni Racing Aluminum intercooler tubing
- Himni Racing Twist-off Greddy BOV Flanges
- Greddy Type-RS BOV (T-body side)
- Greddy Type-S BOV (Turbo side)
- TiAL 44mm V-band Wastegate
- Himni Racing V2 Divided T4 SS Manifold (Ceramic Coated)

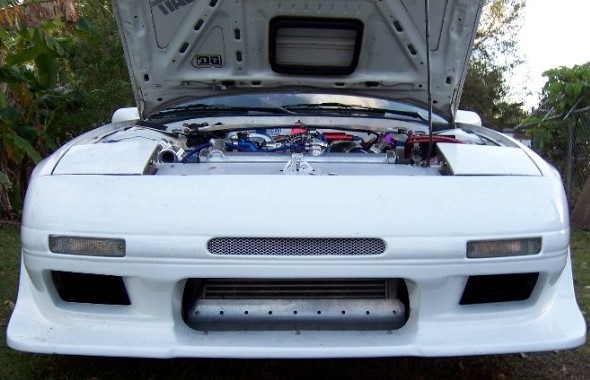

- HUGE Itsu Motorsports 4" Thick Front Mount Intercooler
**Intake
- Himni Racing V2 4.00" aluminum Polished & Power coated Intake
- Monster K&N Filter
- Ported, Polished, Powder Coated upper & lower Intake manifolds
- Throttle Body Mod. w/ Port & Polish
**Exhaust
- Full Custom Himni Racing, 4.00"/3.00", all Mandrel bent Signal exhaust
- 1: Himni Racing 4" Stainless Mandrel V-Band Race Downpipe w/ Flex Bellow
- 2: Himni Racing 3" Midpipe with Stainless Steel Packed pre-silencer
- 3: Real Apexi N1 Turbo Muffler
**Fuel
- 880cc Primary Injectors (Greddy)
- 1600cc Secondarily Injectors (Bosch)
- Aeromotive -10 Fuel Filter
- Aeromotive Fuel Pressure Regulator w/ 1" gauge (1:1 ratio)
- Marren Pulsation Damper
- ALL Earl's Stainless Steel Lines & Fittings (-8 Feed, -6 return)
- Himni Racing Customized fuel tank.
- Walbro 255 LPH Pump
- Bosch 044 BIG Pump
**Gauges
- HKS 60mm Boost Gauge
- 2" Autometer EGT (Ultra-light)
- 2" Autometer Elec. Fuel Pressure (Ultra-light)
- 2" Autometer Oil Pressure (Ultra-light)
- 2" Autometer Water temp. (Ultra-light)
- 5'' Autometer Sport Comp Tach w/ shift light
- Quad pod on a-pillar
- Racing Beat Oil adaptor block
- Reverse indaglow Gauge faces
**Ignition
- X4 Ignition Module
- Bosch Coils X4 ( Himni Racing Custom Bracket)
- Magnecor 10mm R-100 wires
- MSD 6A CDI
- NGK Iridium Plugs

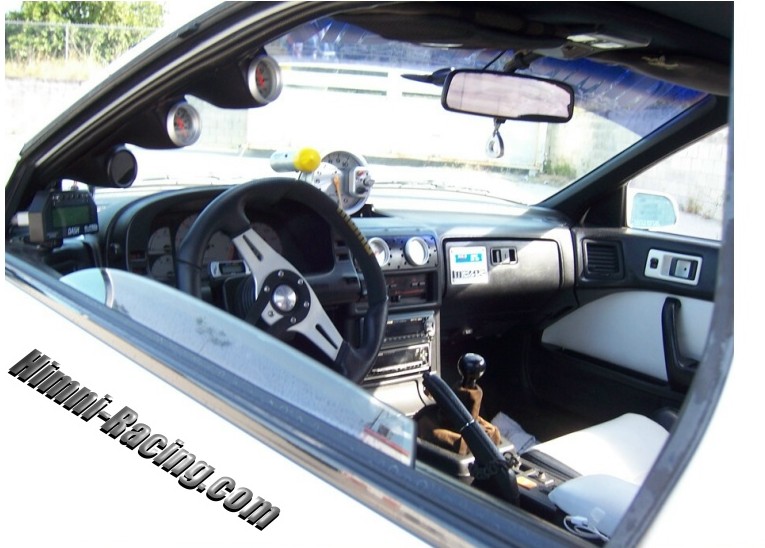

**Interior
- Billet Aluminum Rotor Shift Knob = )
- Custom shift boot
- Custom white leather
- Momo Trek Steering wheel & Hub kit.
**Suspension
- Himni Racing Stainless Steel Tri-Point Front Strut Bar
- Himni Racing Rear Strut bar
- Himni Racing Adjustable End Links
- Himni Racing Adjustable Thrust Rated End Links (rear)
- Himni Racing Adjustable Lower Arm Bar
- Himni Racing B-pillar Brace & Harness bar
- Himni racing Rear Sub-Frame Mounts
- Adjustable Rear Camber Link
- KYB AGX Struts
- Manual Steering Rack
- Prothane Polyurethane bushings (Full kit)
- Eibach Pro-kit Springs (front)
- Suspension Techniques Springs (rear....more drop)
- Suspension Techniques Adjustable Sway Bars

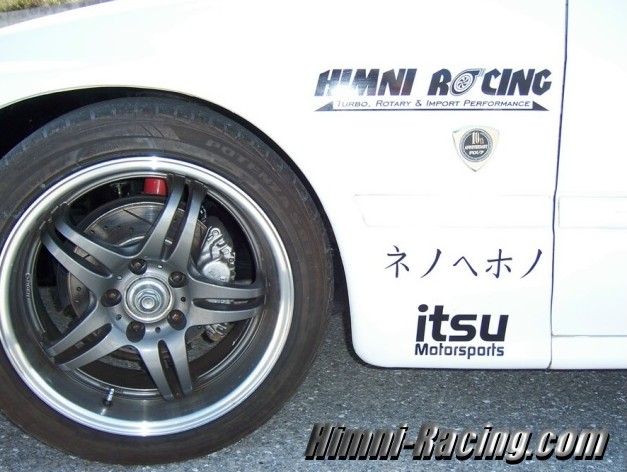

**Tires / Wheels
- 17" X 8" 5 Zigen Typhoon (front)
- 17" X 9" 5 Zigen Typhoon (rear)
- Potenza S03 Pole Position (235/40/17 front)
- Potenza S03 Pole Position (245/40/17 Rear)
